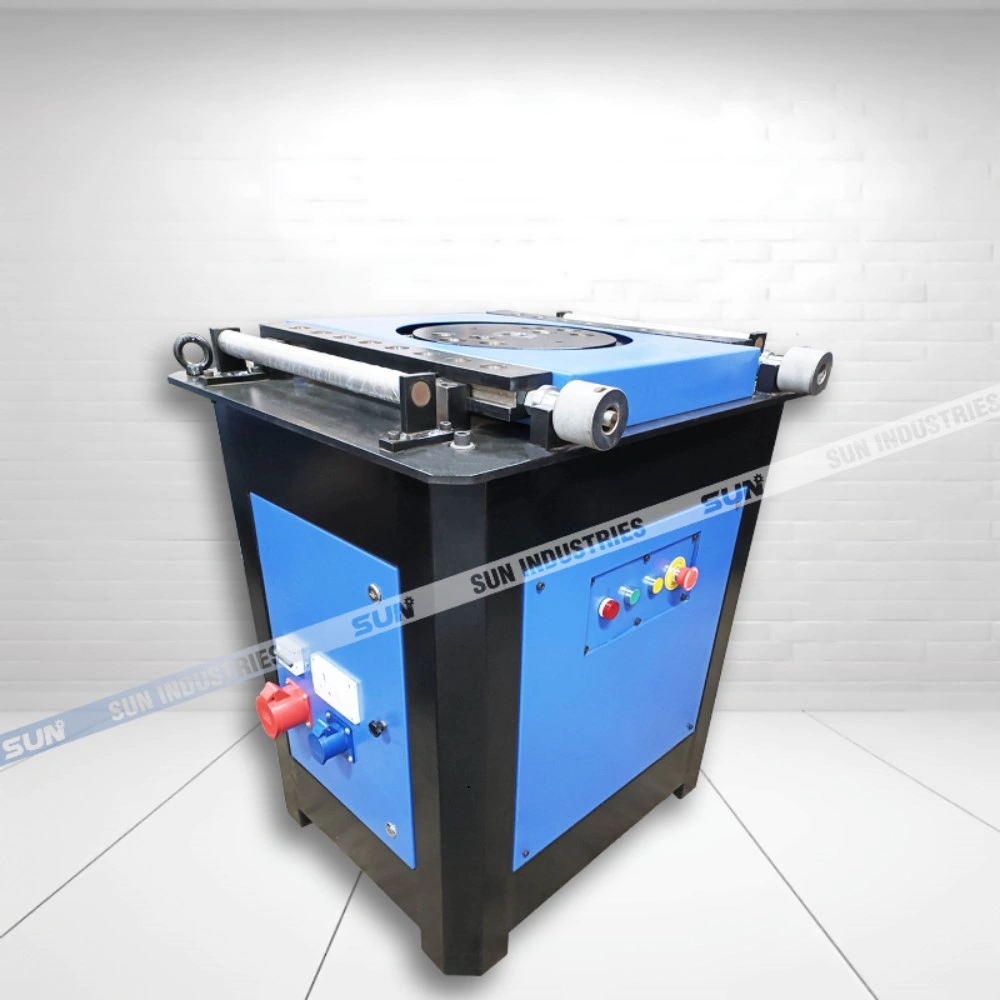

Bar Bending Machine Planetary Type
Bar Bending Machine Planetary Type
Bar Bending Machine Planetary Type
A planetary type bar bending machine is a premium, heavy-duty solution designed for large-scale construction environments that demand power, precision, and continuous operation. Suitable for bending steel rebars up to 32mm in diameter, this machine is commonly used in metro rail projects, tunnels, bridges, high-rise towers, and industrial structures where reinforcement requirements are more intense. What truly sets the planetary type apart from standard bar benders is its planetary gearbox system, which eliminates the need for a belt-driven setup. Unlike traditional machines where the electric motor’s power is transferred via a belt, the planetary system delivers torque directly through a gear mechanism, resulting in significantly less power loss, smoother operation, and reduced mechanical wear.
This direct-drive setup not only increases efficiency but also simplifies maintenance, as there are fewer moving parts prone to stretching or slipping. The machine ensures accurate and repeatable bends, even with thicker and high-tensile rebars, making it a go-to choice for engineers and contractors working on critical structural elements. Its compact design relative to its power output also makes it easier to manage on crowded job sites.
| Bending Diameter | TMT Rebars 6 to 32 MM |
| Bend Wheel Día | 350 |
| RPM of Bend Wheel | 9 RPM |
| Motor Power | 5 HP – 415 Voltage – 3 Phase |
| Motor Speed | 1440 RPM |
| Machine Type | Planetary Gearbox |
| Weight | 350 Kg. (Approx) |
| Other Features | Grease Filled |
Wondering why to get a planetary type bar bender? Let's look at some of the advantages of this particular model for more insight.
- No Exterior Belt Mechanism: This model has no belt fitted externally to the motor, which means less maintenance, fewer breakdowns, and longer service intervals.
- Superior Torque: Planetary gear mechanism offers superior torque transmission, making this machine ideal for high-diameter and high-tensile rebars.
- Energy-Efficient: This machine is highly energy efficient, with minimal power loss between motor and bending disc, making it a feasible option for long-term use.
- Robust Design: Built for continuous, high-volume operation, this machine is a perfect fit for demanding infrastructure projects.
- Greater Productivity: The model allows consistent and precise bending angles, even over long hours of usage, making it the ideal bar bender for projects with tighter deadlines.
- Reduced Vibration: With no external belt, this model aims to reduce vibration and mechanical backlash, increasing safety and user comfort.
- Compact Design: Compact yet powerful, this particular model helps save space on busy construction sites.
- Low Noise and Heat Output: Built with a very powerful engine, this machine produces less noise and heat, making it suitable for both outdoor and semi-enclosed environments.
- Time-efficient machine
- Easy to operate
- Professional finish output
- Energy-efficient motor
- Heavy-duty machine
- Good quality belt pulley
- Strong duty metal body
- Non-vibrating main shaft.
- Powerful motor
