Builder Tower Hoist Angle Type
Builder Tower Hoist Angle Type
Builder Tower Hoist Angle Type

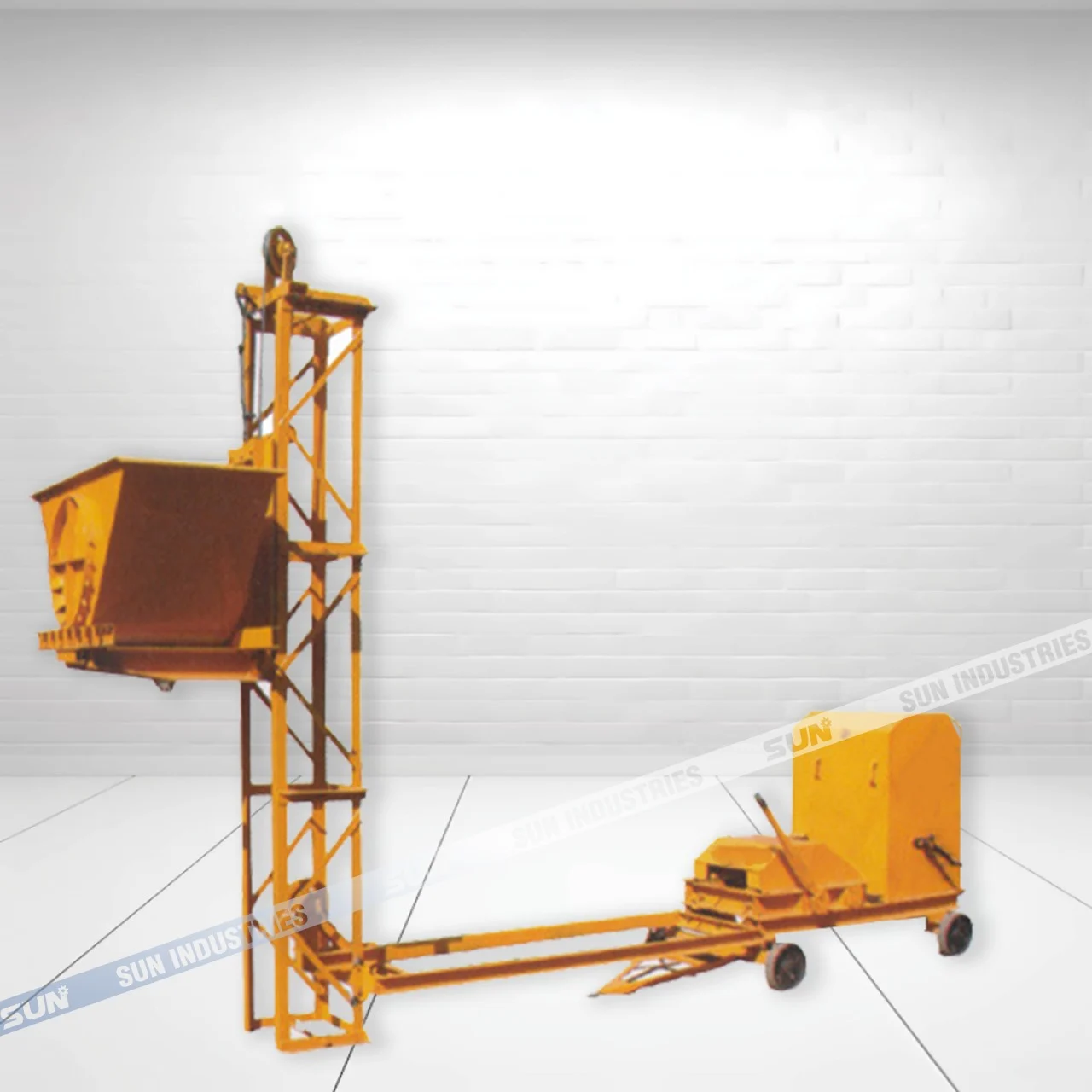

The tower hoist angle type is a compact and efficient lifting solution designed for mid-rise construction projects. With a gross load carrying capacity of 750 kg and a standard height reach of 110 feet, it is well-suited for transporting materials like cement, bricks, and aggregates vertically on-site.
It delivers a lifting speed of 25 meters per minute, which can be customized as per project specifications. The hoist is powered by either an H.P. diesel engine or a 10 H.P. electric motor (3 phase), offering versatility depending on site conditions. Its drive system features a fiber roller type mechanism with a heavy-duty brake shoe liner for safe and steady operation. Built for endurance, the chassis is constructed using heavy-duty steel sections, while a 10 mm steel core wire rope ensures reliable material handling.
The unit can also be equipped with pneumatic wheels with roller bearings and an axle shaft for easy relocation. A notable feature is its base plate design, which supports mounting of both the diesel engine and electric motor, offering dual power compatibility.
| Capacity | 750 kg gross load carrying capacity |
| Height | 110 ft. |
| Speed | 25 mtr/min, but can also be designed according to the specific requirment |
| Winch Prime mover | H.P. diesel engine or 10 HP 3 phase electric motor |
| Drive | Fiber roller type with heavy duty break shoe liner |
| Column | 50 X 50 X 5 mm Angle |
| Chasis | Heavy duty robust made out od heavy steel section |
| Wire Rope | Heavy Duty 10 MM steel core wire rope |
| Optional Handling | Pneumatic wheel with roller bearings with excel shaft |
| Diesel engine & Electric motor can also be fitted in same plate base | |
Below are some of the advantages of using a angle type tower hoist:
- Reliable Load Handling: Capable of lifting up to 750 kg, making it ideal for medium-load construction tasks.
- Tailored Performance: Comes with a standard speed of 25 meters/minute that can be customized to suit different site demands.
- Dual Power Compatibility: Accommodates both diesel engine and electric motor on the same base, providing flexibility in power usage.
- Strong and Sturdy Build: Heavy-duty steel chassis and 10 mm steel core wire rope ensure long-lasting performance and minimal wear.
- Smooth and Safe Operation: Equipped with a fiber roller drive and robust brake shoe liner for controlled and secure lifting.
- Portable Design: Optional pneumatic wheels with roller bearings enable smooth movement across construction sites.
- Fiber roller type drive
- Heavy duty brake shoe liner
- Sturdy steel chassis
- Wheels with roller bearings
- Robust excel shaft
- Great output and high performance
- Excellent mobility
- Impressive design
