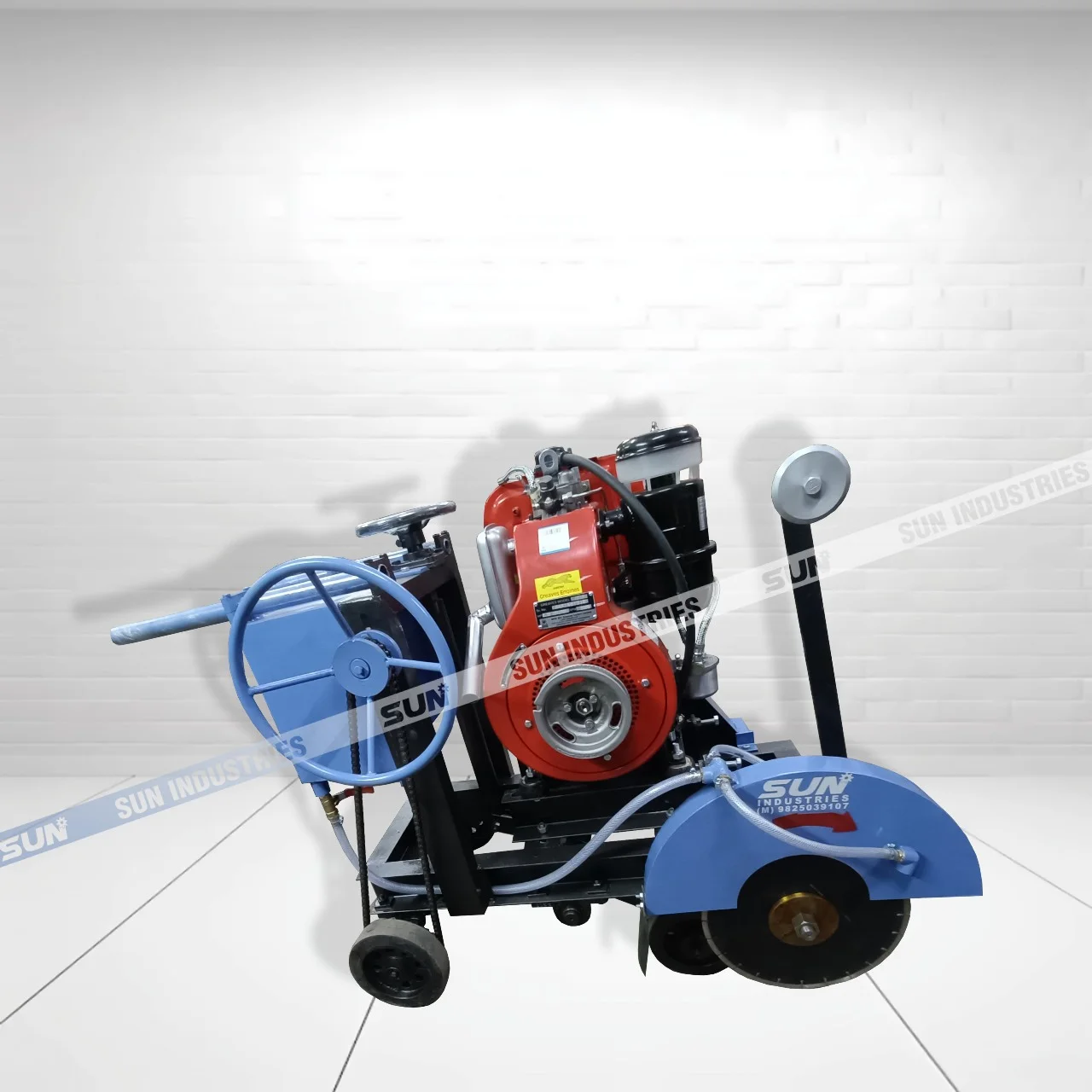

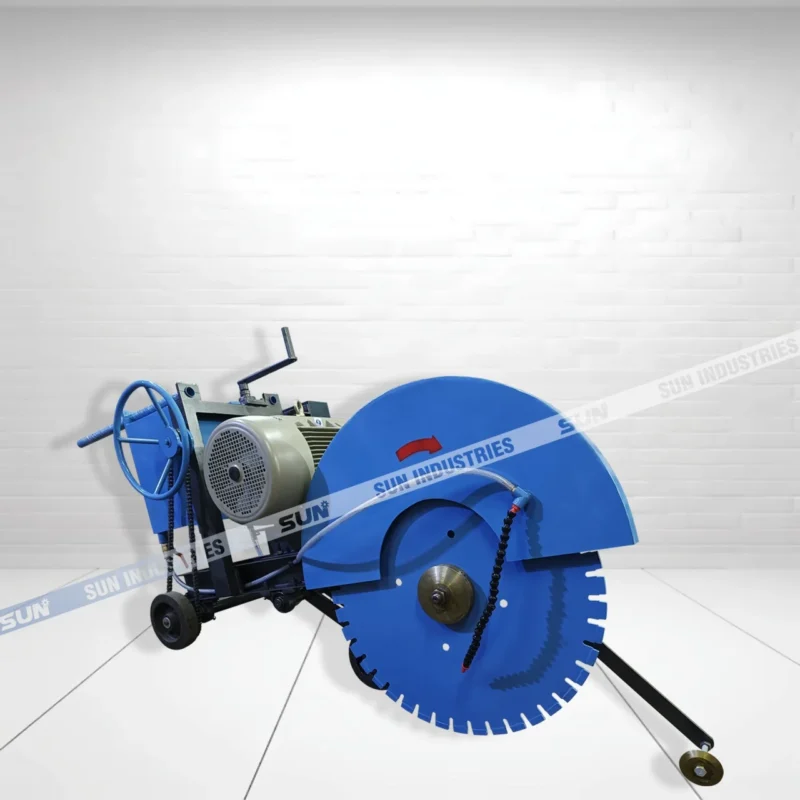

Concrete Groove Cutter Machine Chain Type
Concrete Groove Cutter Machine Chain Type
Concrete Groove Cutter Machine Chain Type
The chain type concrete groove cutter features a chain-driven transmission that provides smooth and uniform blade rotation. This design is particularly useful when consistent cutting depth and finish quality are paramount.
Specifications
| Water tank capacity | 30 liters. |
| Blades used | 14 to 20 Inch (Diameter) |
| Max Depth Cutting | 5 -6 Inch (Approx) |
| Driven Mode | Chain Type |
| Operated Grade | Semi-Automatic |
| Prime Mover | 10 HP Greaves Diesel Engine / 7.5 HP or 10 HP Electric Motor |
| RPM | Depend on Engine or Motor Capacity |
| Note : Diesel Engine or Electric Motor can also be fitted in same plate base | |
Advantages
The chain type groove cutter machine is useful as they ensure higher quality finish. Below are some of the key advantages of the chain type concrete groove cutter:
- Innovative Design: chain drive system offers a steady, backlash-free transfer of power to the blade for smoother cuts.
- Long-Term Savings: Chains are easier and less expensive to replace than gearboxes, reducing long-term maintenance costs.
- Reduced Vibration: This feature of the machine minimizes operator fatigue and enhances the precision of each pass during operation.
- Longer Life: The robust chain mechanism is less susceptible to damage from debris and offers extended service intervals.
Features
- Easy to clean blades
- Powerful motor
- Good water tank capacity
- Fine metal body
- Semi-automatic
- Sharp and precise blades
- Sturdy chain
- Professional quality output
