Builder Tower Hoist Channel Type
Builder Tower Hoist Channel Type
Builder Tower Hoist Channel Type

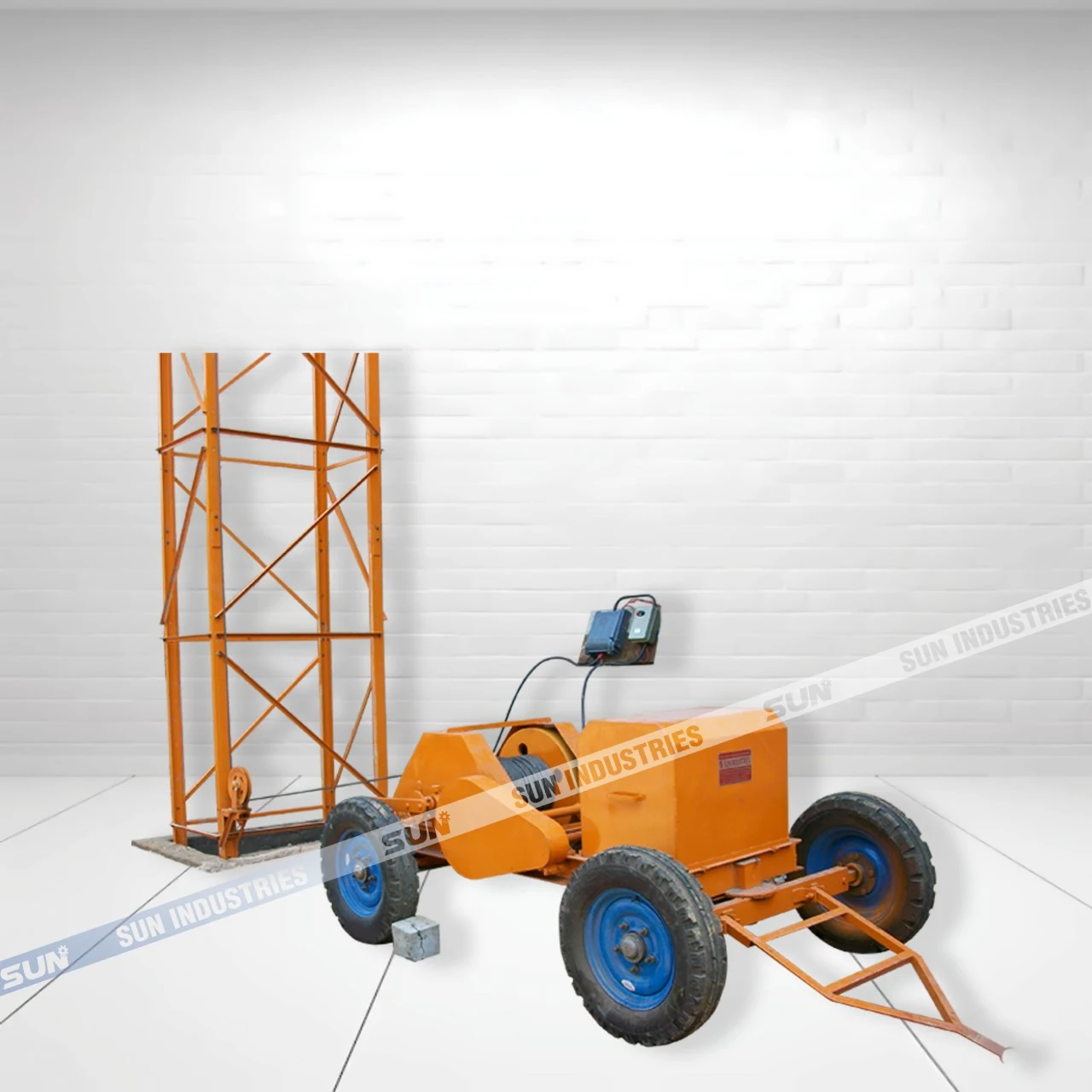

The tower hoist channel type is a robust and efficient material lifting solution engineered to handle heavy loads and high-rise operations with ease. With a gross load carrying capacity of 1000 kg and a standard height reach of 200 feet, this hoist is ideal for transporting construction materials vertically across multi-storey buildings.
It operates at a lifting speed of 33 meters per minute, which can be customized based on project requirements. Powered by a 10 H.P./12 H.P. diesel engine or a 12 H.P. electric motor, it features a fiber roller drive system equipped with a heavy-duty brake shoe liner for smooth and secure lifting. The chassis is built from heavy-duty steel sections, ensuring maximum structural integrity. A 12 mm steel core wire rope offers strong, reliable lifting support, while optional pneumatic wheels with roller bearings and an axle shaft enable easy relocation.
A key highlight of this model is its dual-mounting base plate, allowing both the diesel engine and electric motor to be fitted on the same frame, offering flexibility on different job sites.
| Capacity | 1000 kg gross load carrying capacity |
| Height | 200 ft. |
| Speed | 33 mtr/min, but can also be designed according to the specific requirment |
| Winch Prime mover | 10 H.P.or 12 H.P. diesel engine / 12 HP electric motor 3HP 3 Phase |
| Drive | Fiber roller type with heavy duty break shoe liner |
| Chasis | Heavy duty robust made out od heavy steel section |
| Wire Rope | Heavy Duty 12 MM steel core wire rope |
| Optional Handling | Pneumatic wheel with roller bearings with excel shaft |
| Diesel engine & Electric motor can also be fitted in same plate base | |
Below are some of the advantages of using a channel type tower hoist:
- High Load Capacity: Capable of lifting up to 1000 kg, making it suitable for carrying bulky and heavy construction materials in one go.
- Customizable Speed: Standard lifting speed of 33 meters/minute can be tailored to match specific project needs for improved workflow.
- Dual Power Options: Designed to accommodate both diesel and electric motors on the same base plate, offering operational flexibility.
- Durable Build: Heavy-duty steel chassis and 12 mm steel core wire rope ensure long-term durability and minimal maintenance.
- Reliable Braking System: Fiber roller drive with heavy-duty brake shoe liner offers strong grip and safety during operation.
- Mobility Ready: Optional pneumatic wheels with roller bearings enable smooth movement across the site, enhancing usability.
- Fiber roller type drive
- Heavy duty brake shoe liner
- Sturdy steel chassis
- Wheels with roller bearings
- Robust excel shaft
- Great output and high performance
- Excellent mobility
- Impressive design
